SIGINT payloads

Detect, classify and geolocate emitters from the air — C2 nodes, jammers and drone control links — then cue the gimbal onto them.

RFeye Node 100-18-LW

Airborne wideband SIGINT / TDOA node · Aeter V2

Frequency: 9 kHz – 18 GHz
IBW · sweep: 100 MHz · 390 GHz/s
Geolocation: TDOA, real-time or post-flight
Timing: GNSS + holdover ≤ 1.5 μs, 8 h
Weight: 1.95 kg · 40 W · IP65

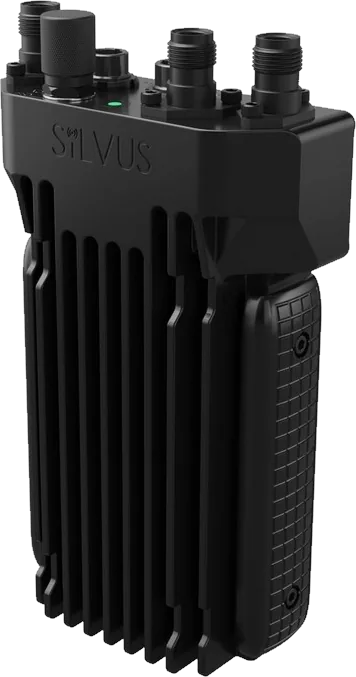

FASST 6000 / LSNRS

Ultra-low-SWaP spectrum sensor + DF · Aeter V1

Frequency: 1 MHz – 6 GHz
Scan speed: Up to 144.5 THz/s
Geolocation: ±4° AoA per sensor, triangulation
Channels: 4 coherent × 26.875 MHz
Weight: 49.5 g OEM · 17 W

RFeye Site · Mission Manager

Geolocation, spectrum and coverage planning

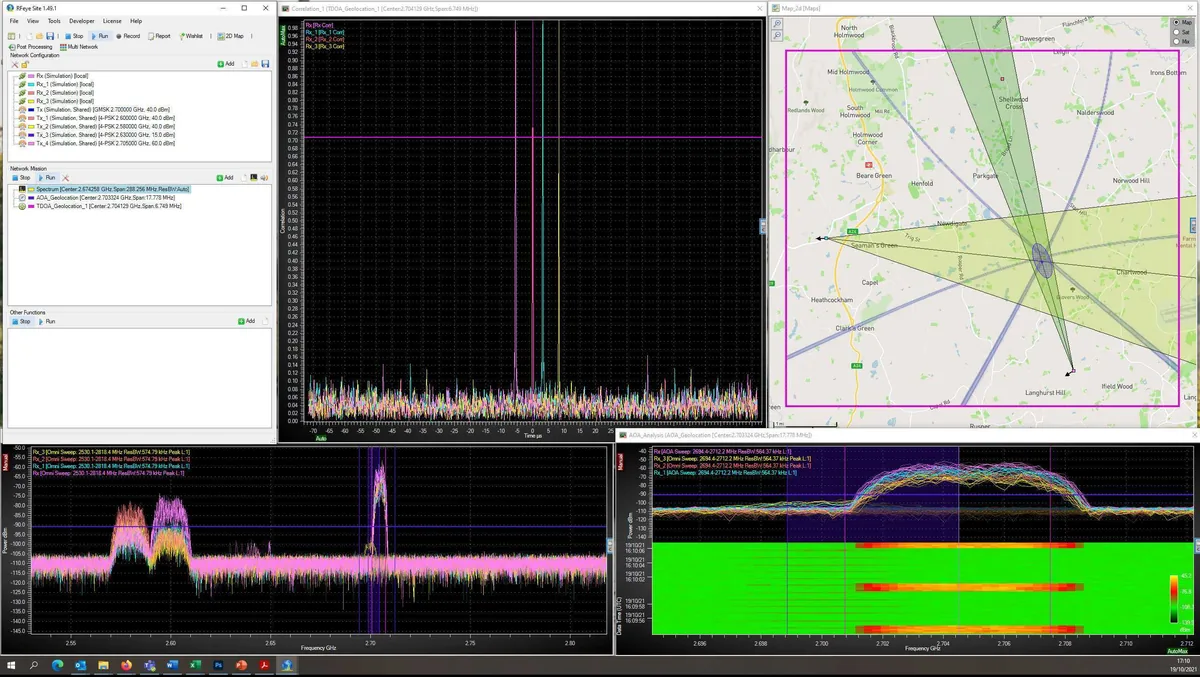

AoA and TDOA emitter fix displayed on a map — AoA + TDOA emitter fix on the map.

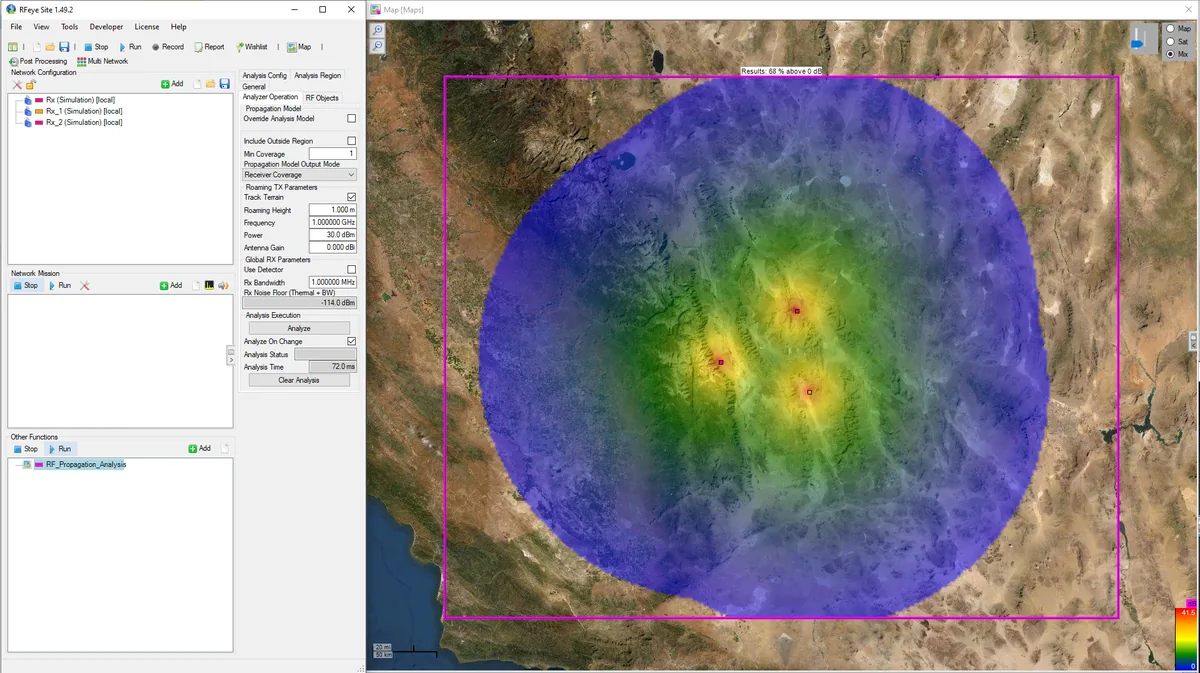

RF propagation and coverage planning heat map — RF propagation and coverage planning.

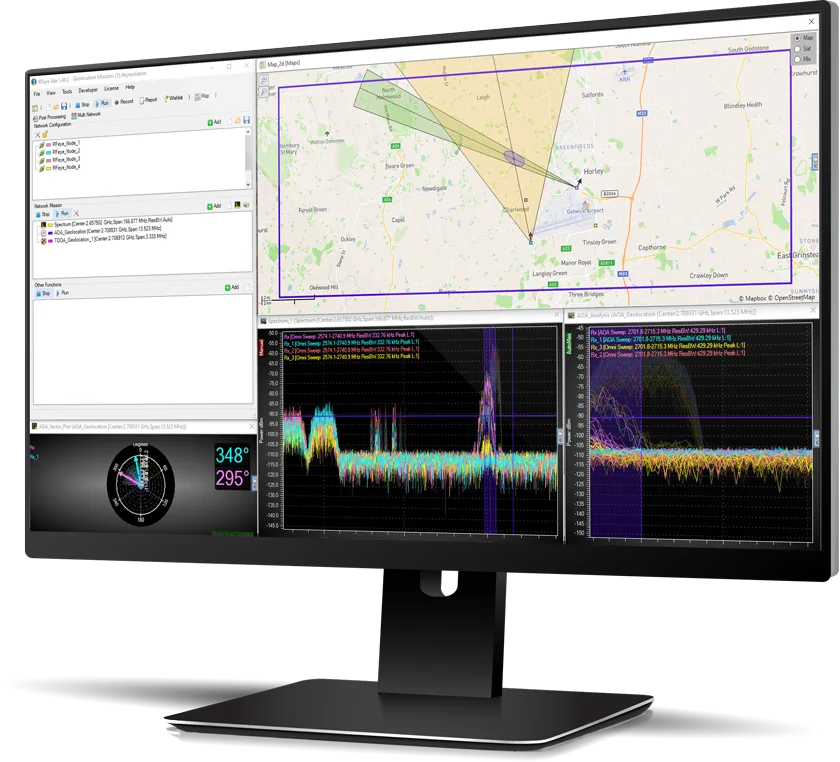

RFeye Site workstation showing geolocation, spectrum and mapping

RFeye Site provides AoA/TDOA geolocation, spectrum analysis and mapping. Emitter fixes are shared across the same IP mesh that carries C2 and video, so SIGINT detections can cue the EO/IR gimbal directly.
