Synap Mission C2

Ground control system

Rugged ground control stations running Synap Mission C2 — one IP mesh for C2, video and SIGINT.

Interoperability

  • STANAG 4609 video with MISB KLV
  • Target list and call-for-fire
  • One IP mesh for C2, video and SIGINT

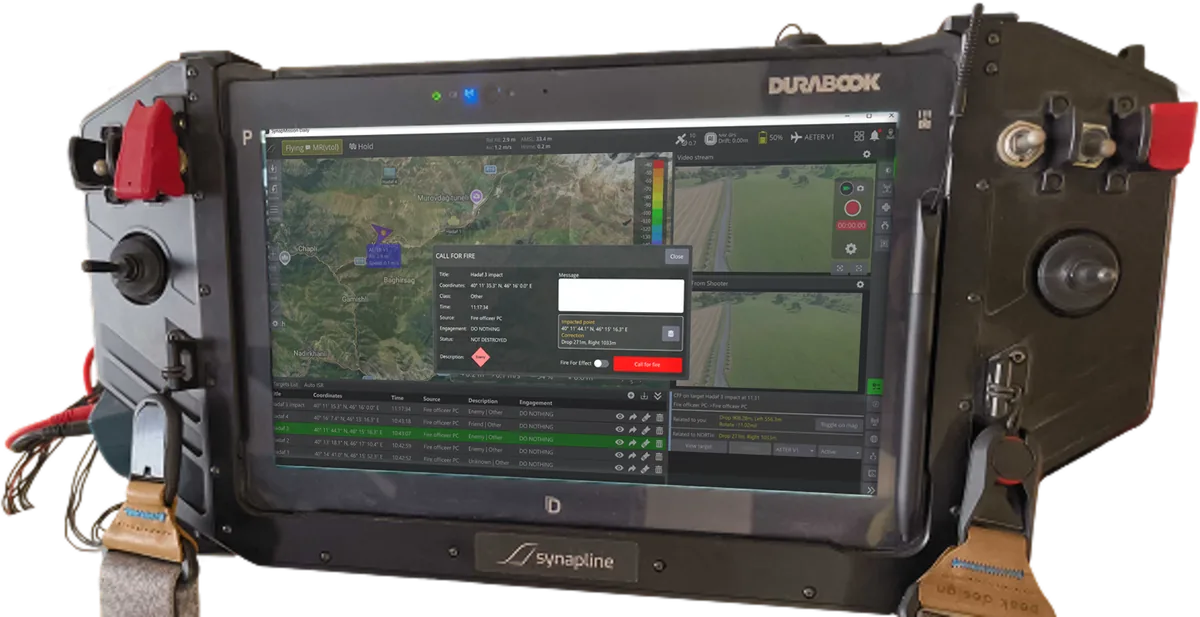

Rugged handheld ground control station with joysticks

Handheld

Display
11.6" Full HD, Durabook R11
Controls
2 × Hall-effect joysticks, 6 toggles
Rugged
IP66 · MIL-STD-810H / 461G
Interfaces
2 × LAN, USB, HDMI, USB-C
Weight
3.2 kg · 452 × 220 × 104 mm
Rugged laptop ground control station

Rugged laptop

Display
15.6" FHD, 1000 nits, glove touch
Battery
Dual hot-swappable
Rugged
IP66 · MIL-STD-810H / 461G
Operating temp.
−29 °C to +63 °C

Synap OS

Mission control software that ties sensors, UAVs, artillery and command posts into one network.

Learn more

MANET datalink

Anti-jam IP mesh radios and ground antennas, up to 200 km.

Learn more
